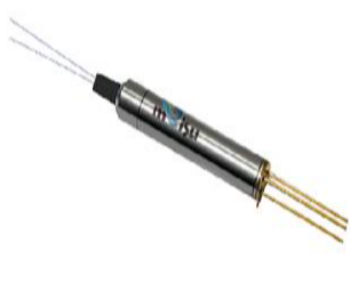

光开关(MEMS/棱镜/步进电机)lDicon
多路光开关/开关矩阵
DiCon是设计和制造光学元件领域公认的领导者，提供强大的光纤开关产品线，可用于多种应用。为了满足跨多个市场不同应用的光开关需求，DiCon在三个独立的技术平台和广泛的配置中开发和提供光开关。
主要特征
返回列表页产品特点
·超低插损
典型应用
·宽工作波长范围
产品特征
﹒超长寿命
标准模块光学参数
| Platform | MEMS | Prism | stepper Motor |
|---|---|---|---|
| Life Time | 1 Billion Cycles | 10 Million Cycles | 10 Million Cycles |
| Max 1xN config. | 1x12(Single Stage) | 1x8 | 1x50 (Standard) |
| 1x128(Double Stage) | 1x120 (Custom) | ||
| Max lL | 0.7 dB (1x2) | 1.0 dB (1x2) | 1.2 dB |
| 0.8 dB (1x8) | 2.5 dB (1x8) | ||
| Cross Talk | 50 dB | 80 dB | 80 dB |
| switching Time | 10 ms (1x2) | 12 ms (1x2) | 300 ms |
| 30 ms (1x8) | 75 ms (1x8) | + 17ms/channel | |
| Qualification | GR-1221 | GR-1073 | |
| Latching Option | No | Yes | No |
| Single Mode Fiber | Yes | Yes | Yes |
| Multi Mode Fiber | Yes | Yes | Yes |
| 1060 nm Fiber | Yes | Yes | Yes |
| PM Fiber | Yes | Yes | Yes |
| Specialty Fiber | ldeal for large core fiber | ||
| 2xN Availability | Yes | No | Yes |
| Matrix Availability | Yes | No | Customized |
