光开关(MEMS/棱镜/步进电机)lDicon

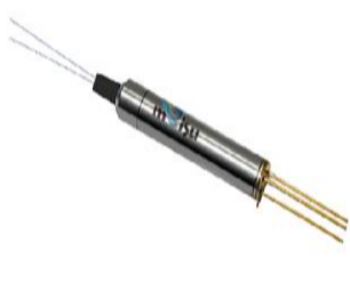

MEMS光开关
DiCon是设计和制造光学元件领域公认的领导者,提供强大的光纤开关产品线,可用于多种应用。为了满足跨多个市场不同应用的光开关需求,DiCon在三个独立的技术平台和广泛的配置中开发和提供光开关。
主要特征 ![](tpl/_template/image/xla3.png)
![](tpl/_template/image/xla3.png)
![](tpl/_template/image/return.png)
产品特点
![](tpl/_template/image/param1.png)
·超低插损
典型应用
![](tpl/_template/image/param2.png)
·宽工作波长范围
产品特征
![](tpl/_template/image/param3.png)
﹒超长寿命
标准模块光学参数
Platform | MEMS | Prism | stepper Motor |
---|---|---|---|
Life Time | 1 Billion Cycles | 10 Million Cycles | 10 Million Cycles |
Max 1xN config. | 1x12(Single Stage) | 1x8 | 1x50 (Standard) |
1x128(Double Stage) | 1x120 (Custom) | ||
Max lL | 0.7 dB (1x2) | 1.0 dB (1x2) | 1.2 dB |
0.8 dB (1x8) | 2.5 dB (1x8) | ||
Cross Talk | 50 dB | 80 dB | 80 dB |
switching Time | 10 ms (1x2) | 12 ms (1x2) | 300 ms |
30 ms (1x8) | 75 ms (1x8) | + 17ms/channel | |
Qualification | GR-1221 | GR-1073 | |
Latching Option | No | Yes | No |
Single Mode Fiber | Yes | Yes | Yes |
Multi Mode Fiber | Yes | Yes | Yes |
1060 nm Fiber | Yes | Yes | Yes |
PM Fiber | Yes | Yes | Yes |
Specialty Fiber | ldeal for large core fiber | ||
2xN Availability | Yes | No | Yes |
Matrix Availability | Yes | No | Customized |
