EM-CCD相机C9100-23B
科研级相机

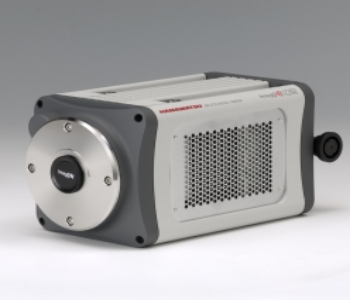

lmagEM X2是一款非常多功能的相机，全画幅下输出速度达70帧/秒，模拟拼接(binning)）操作下对兴趣区域(ROls）的输出达1076帧/秒，工作安静。其在接近黑暗的条件下具有很高的信噪比，而且暗电流极低，因此既能长时间又能快速的进行定量超弱光成像。
主要特征
返回列表页标准模块光学参数
| 产品型号 | C9100-24B |
|---|---|
| 相机头类型 | Hermetic vacuum-sealed air/water-cooled head1 |
| 窗口 | Anti-reflection (AR) coatings on both sides single window |
| 镀抗反膜 | Yes |
| 成像设备 | Electron Multiplying Back-Thinned Frame Transfer CCD |
| 有效像素数 | 512 (H)×512 (V) |
| 像素尺寸 | 16 um (H)×16 um (V) |
| 有效面积 | 8.19 mm (H) × 8.19 mm (v) |
| 像素时钟速率(EM-CCD读出) | 22 MHz 11 MHz 0.6875 MHz |
| 像素时钟速率(正常CCD读出) | 0.6875 MHz |
| EM(electron multiplying)增益 | 4x to 1200x (typ.)2 |
| 超低光探测 | Photon lmaging mode (1 2 3) |
| 最快读出速度 | 70.4 frames/s to 1076 frames/s |
| 读出噪声(EM-CCD读出) | 36 electrons (EM gain 4x at 22 MHz) (rms)(typ.)25 electrons (EM gain 4× at 11 MHz)(rms)(typ.) |
| 8 electrons (EM gain 4× at 0.6875 MHz)(rms)(typ.)1 electron max.(EM gain 1200×)(rms)(typ.) | |
| 读出噪声(正常CCD读出) | 8 electrons (at 0.6875 MHz) (rms)(typ.) |
| 满阱容量 | EM-CCD readout: 370 000 electrons (Max.800 000 electrons) (typ.)3 |
| NORMAL CCD readout: 140 000 electrons (typ.) | |
| 模拟增益 | EM-CCD readout (22 MHz):1× |
| EM-CCD readout(11 MHz/0.6875 MHz): 0.5× 1× Normal CCD readout: 1×2×3×4×5× | |
| 制冷温度(强制风冷) | At temperature control: -65 ℃ stabilized (o ℃ to +30 ℃) |
| At maximum cooling (typ.): -80 °C (Room temperature: stable at +20 ℃) | |
| 制冷温度(水冷) | At temperature control: -80 ℃ stabilized (Water temperature: +20℃) |
| At maximum cooling (typ.):-100 ℃ (Water temperature: lower than +10 ℃) | |
| 温度稳定性(强制风冷) | 士0.01 ℃ (typ.) |
| 温度稳定性(水冷) | ±0.01 ℃(typ.) |
| 暗电流(强制风冷) | 0.005 electron/pixel/s (-65 ℃) (typ.) |
| 暗电流(水冷) | 0.005 electron/pixel/s (-65 ℃) (typ.) |
| 时钟感生电荷 | 0.0015 events/pixel/frame (typ.) |
| 曝光时间(内部同步模式) | 13.9 ms to 1 s (22 MHz)27.2 ms to 2 h (11 MHz)421.5 ms to 2 h (0.6875 MHz) |
| 曝光时间(外部触发模式) | 10 us to 1 s (22 MHz) |
| 10 us to 2 h(11 MHz 0.6875 MHz) | |
| A/D 转换器 | 16 bit |
| 输出信号/外部控制 | IEEE1394b |
| 子阵列 | Every 16 lines (horizontal vertical) size position can be set |
| 图像拼接 | 2×2 4×4 8×8 16×164 |
| 外部触发模式 | Edge trigger Level trigger Start trigger Synchronous readout trigger |
| 触发输出 | Exposure timing output Programmable timing output (Delay and pulse length are variable.) Trigger ready output |
| 图像处理功能(实时) | Background subtraction Shading correction Recursive filter Frame averaging Spot noise reducer5 |
| EM增益保护 | EM warning mode EM protection mode |
| EM增益重调 | Available |
| 镜头卡口 | C-mount |
| 电源 | AC100 V to 240 V 50 Hz/ 60 Hz |
| 功耗 | Approx.140 VA |
| 环境储存温度 | -10 C to + 50 °C |
| 环境工作温度 | 0 °C to + 40 °C |
| 保证性能温度 | 0 °C to + 30 °C |
| 环境工作/储存湿度 | 70 max.(with no condensation) |
