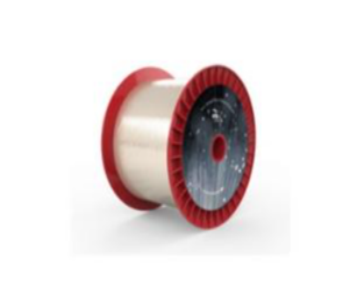

保偏高非线性光纤│HNLF-PM
非线性光纤
公司提供的高非线性光纤(HNLF)将高非线性系数与数值小群速度色散相结合。光纤设计包括一个高delta纤芯，周围环绕着—个深凹陷的环，并掺杂了氟。
主要特征
返回列表页产品特点
·光纤模块（带接头)可选
典型应用
-标准光纤多种色散可选
标准模块光学参数
| Product Description | PM Highly-Non-Linear Optical Fiber |
|---|---|
| Optical Characteristics | |
| Type | Non-Standard |
| Fiber Length | 50 to 500 m |
| Fiber Length Tolerance | ± 3 |
| Cutoff Wavelength | 1500 nm |
| Effective Area (Typical) | 12.5 um2 |
| Dispersion | -1.5 to +2.0 ps/(nm-km) |
| Dispersion Slope (Typical) | 0.025 ps/(nm2-km) |
| Attenuation | ≤0.90 dB/km |
| Typical Attenuation | 0.8 |
| Splice Loss to SSMF Pigtail | ≤ 0.50 dB |
| splice Loss to SSMF Pigtail | 0.3 dB(Typical) |
| Polarization Extinction Ratio | 18 dB (min) |
| PM or non-PM | PM |
| Non-Linear Coefficient | 10.7 W-1-km-1(Typical) |
