太赫兹带通滤波器
太赫兹带通滤波器

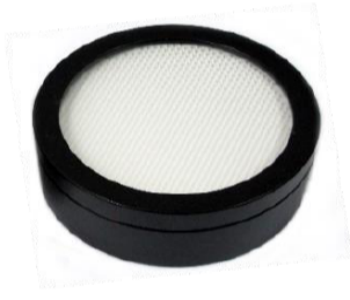

公司提供的太赫兹带通滤波器旨在传输20至3000um波长范围内的辐射。太赫兹滤波器由带孔的薄金属箔制成。孔的配置取决于所需的波长。
主要特征
返回列表页产品特点
﹒0.1至15 THz (3000至20 um)范围内的任何通带
典型应用
·通带内的高透过率(60-90)
产品特征
-阻带中的低透射率(4)
标准模块光学参数
| 型号/Model | 描述/Description | 外直径 mm | 外厚度 mm | 有效区域 mm |
|---|---|---|---|---|
| BPF10.0-24 | Band Pass Filter 10.0 THz (ring holder) | 31 | 8.5 | 24 |
| BPF10.0-35 | Band Pass Filter 10.0 THz (ring holder) | 44 | 8.5 | 35 |
| BPF10.0-47 | Band Pass Filter 10.0 THz (ring holder) | 60 | 9.5 | 47 |
| BPF3.0-24 | Band Pass Filter 3.0 THz (ring holder) | 31 | 8.5 | 24 |
| BPF3.0-35 | Band Pass Filter 3.0 THz (ring holder) | 44 | 8.5 | 35 |
| BPF3.0-47 | Band Pass Filter 3.0 THz (ring holder) | 60 | 9.5 | 47 |
| BPF1.5-24 | Band Pass Filter 1.5 THz (ring holder) | 31 | 8.5 | 24 |
| BPF1.5-35 | Band Pass Filter 1.5 THz (ring holder) | 44 | 8.5 | 35 |
| BPF1.5-47 | Band Pass Filter 1.5 THz (ring holder) | 60 | 9.5 | 47 |
| BPF1.0-24 | Band Pass Filter 1.0 THz (ring holder) | 31 | 8.5 | 24 |
| BPF1.0-35 | Band Pass Filter 1.0 THz (ring holder) | 44 | 8.5 | 35 |
| BPF1.0-47 | Band Pass Filter 1.0 THz (ring holder) | 60 | 9.5 | 47 |
| BPF0.5-24 | Band Pass Filter 0.5 THz (ring holder) | 31 | 8.5 | 24 |
| BPF0.5-35 | Band Pass Filter 0.5 THz (ring holder) | 44 | 8.5 | 35 |
| BPF0.5-47 | Band Pass Filter 0.5 THz (ring holder) | 60 | 9.5 | 47 |
| BPF0.3-24 | Band Pass Filter 0.3 THz (ring holder) | 31 | 8.5 | 24 |
| BPF0.3-35 | Band Pass Filter 0.3 THz (ring holder) | 44 | 8.5 | 35 |
| BPF0.3-47 | Band Pass Filter 0.3 THz (ring holder) | 60 | 9.5 | 47 |
