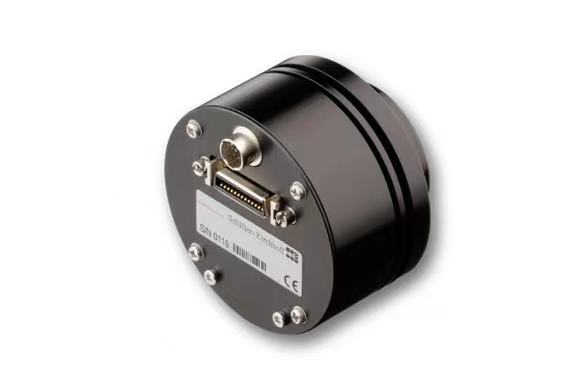

线扫描相机|USB3.0接口
线阵相机
线扫描相机是在许多工业环境中使用的半导体相机，例如在机器视觉应用中。根据类型，单个光敏线传感器包含多达22800个像素(像素]。入射到传感器上的光能被转换成电信号，以便在相机内进行数字化。在8位分新率下，A/D转换器将每个像素的输出电,压传输到256个亮度级之一，在12位分辨率下传输到4096个亮度级。彩色线扫描相机为红、绿和蓝提供三个独立的线信号，每像素为3x 8位或3 12位。数字化的输出信号被传送到计管机。
主要特征
返回列表页产品特点
像素:512~8160像素可选
典型应用
扫描速率:高达 53.5 KHz
产品特征
高级同步控制
标准模块光学参数
| 线扫描相机|USB3.0接口 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 相机型号 | 帧数 | 像素尺寸 | 传感器长度 | 线扫速率 | 抗干扰 | 集成控制 | 阴影校正 | 阈值模式 | 比特位深 |
| SK4096U3FD-L | 4096 | 10 x 10 um | 41.0mm | 27.8 kHz | X | X | X | X | 8/12 Bit |
| SK512U3SH | 512 | 14 x 14 um | 7.2 mm | 35.7 kHz | X | X | X | X | 8/12 Bit |
| SK4096U3PD-L | 4096 | 10 x 10 um | 41.0 mm | 11.9 kHz | X | X | X | X | 8/12 Bit |
| SK1024U3SH | 1024 | 14 x 14 um | 14.3 mm | 27 kHz | X | X | X | X | 8/12 Bit |
| SK8160U3KO-LB | 8160 | 5x 5um | 40.8mm | 11.9 kHz | X | X | X | X | 8/12 Bit |
| SK8100U3JRC | 2700x3 | 8x8um | 21.6mm | 2.9 kHz | X | X | 8/12 Bit | ||
| SK7500U3TO-XL | 7500 | 7x7um | 52.5 mm | 5.2 kHz | X | X | 8/12 Bit | ||
| SK7500U3TF-XB | 7500 | 7x7um | 52.5 mm | 10.1 kHz | X | X | 8/12 Bit | ||
| SK7456U3TO | 7456 | 4.7 x 4.7 um | 35.0 mm | 5.2 kHz | X | X | 8/12 Bit | ||
| SK6288U3KOC | 2096 x 3 | 14 x 14 um | 29.3 mm | 9.3 kHz | X | X | 8/12 Bit | ||
| SK5150U3JR | 5148 | 7x7um | 36.0mm | 7.6 kHz | X | X | 8/12 Bit | ||
| SK512U3HU | 512 | 25 x 500 um | 12.8 mm | 26.3 kHz | X | X | X | X | 8/12 Bit |
| SK4096U3HW | 4096 | 7 x 200 um | 28.7mm | 2.4 kHz | X | X | X | X | 8/12 Bit |
| SK22800U3JRC-XC | 7600 x3 | 9.3 x 9.3 um | 70.9 mm | 6.2 kHz | X | 38 Bit | |||
| SK22368U3TOC | 7456 x 3 | 4.7 x 4.7 um | 35.0 mm | 6.4 kHz | X | 38 Bit | |||
| SK2048U3SH | 2048 | 14 x 14 um | 28.7 mm | 14 kHz | X | X | X | X | 8/12 Bit |
| SK2048U3JR | 2048 | 14 x 14 um | 28.7 mm | 4.7 kHz | X | X | X | 8/12 Bit | |
| SK2048U3HW | 2048 | 14 x 200 um | 28.7 mm | 7.1 kHz | X | X | X | X | 8/12 Bit |
| SK2048U3HU | 2048 | 12.5 x 500 um | 25.6 mm | 7.1 kHz | X | X | X | X | 8/12 Bit |
| SK2048U3HA | 2048 | 8x8um | 16.4 mm | 52.6 kHz | X | X | X | X | 8/12 Bit |
| SK16200U3TOC | 5400 x 3 | 7x7um | 37.8 mm | 8.7 kHz | X | 38 Bit | |||
| SK16080U3JRC-L | 5360 x 3 | 8x8um | 42.9 mm | 1.5 kHz | X | X | 8/12 Bit | ||
| SK12240U3KOC-LB | 4080x3 | 10 x 10 um | 40.8mm | 4.8 kHz | X | X | X | 8/12 Bit | |
| SK10944U3JRC | 3648X3 | 8x8um | 29.2mm | 2.1 kHz | X | X | 8/12 Bit | ||
| SK1024U3SD | 1024 | 14 x 14 um | 14.3 mm | 27 kHz | X | X | X | X | 8/12 Bit |
| SK1024U3HV | 1024 | 25 x 500 um | 25.6 mm | 13.9 kHz | X | X | X | X | 8/12 Bit |
| SK1024U3HU | 1024 | 12.5 x 500 um | 12.8 mm | 13.9 kHz | X | X | X | X | 8/12 Bit |
